Wind Pressure Sensor

Introduction

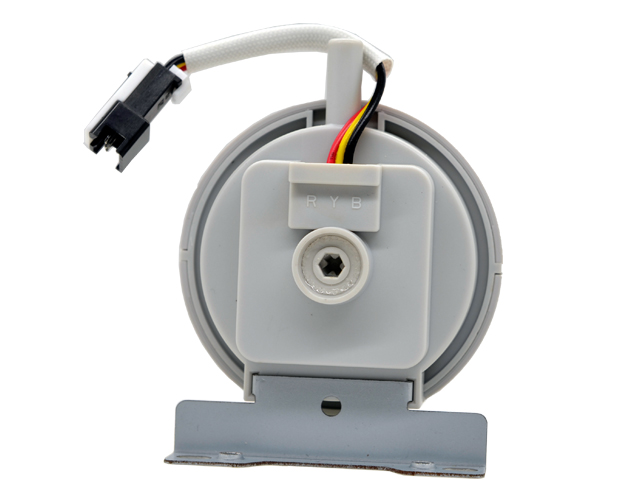

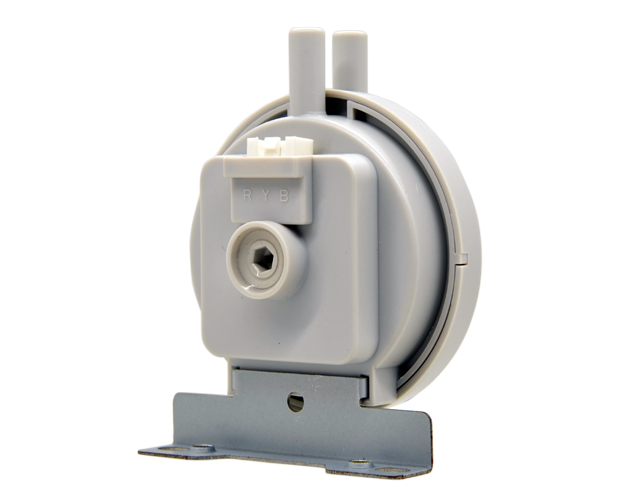

C7 Model pressure Sensor are specially developed for medium air pressure detection systems. Such as water level control, mini air compress control or other medium pressure range from 0-10Kpa. which can measure the low positive, negative or differential pressures.

Series C7 wind Pressure Senser are the ideal choice for OEM applications. They are designed with sturdy, contaminant-free construction and provide low cost, high accuracy and reliability. They have a wide operating temperature and set point range, and can be used to sense positive, negative or differential air pressure. Pressure range are available from 0mm to 1000mm H2O.

Specifications

Body

Glass filled polyester

Diaphragm

Silicon

Input

5~12V DC

OutPut

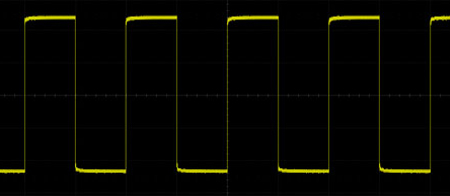

Pulse Output(Square Wave)

Life

100,000 Cycles

Max Operating Pressure

0.1Mpa

Port Connection

6.3mm O.D

Working Pressure Range

0~+1000 mmH2O(Customerlized)

Operating Position

Diaphragm vertical

Operating Temperature

-40°C ~ +90°C

Deviation of Setting

±3mm H2O

Medium

Air or neutral gases
