Water Flow Sensor

Introduction

The F1 series flow sensor is based on the traditional rotor structure, flow rate range from 2L/M to 20L/M

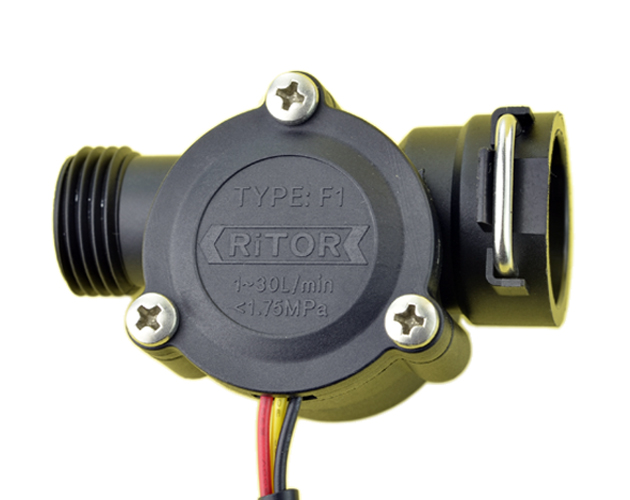

F1 Series Water Flow Sensor is designed to detect the water flow rate into the domestic water circuit. The rotation of the impeller is detected by a hall sensor. The rotational speed of the rotor is proportional to the flow ratethrough a constant K factor.

Doozen flow sensors are available with multi choice of mounting base, simple structure and high reliability, Thin, light weight and low price, Tough structure against high water pressure

Specifications

Body

PA66

Impellor distributor

POM

Input

5~12V DC

OutPut

Pulse Output(Square Wave)

Medium temperature

80°C

Burst pressure

1.7Mpa

Port Connection

G 1/4(Optional)

Flowrate

3~20 l/min(Customerlized)

Exactness of signal

±%10

Medium

Clean water

Output Characterics

f=6.0Q(Click for more)
